DRAIL - hardware hacked multi fx processor -eurorack module
£160.00 / Sold Out
NOTE:
If shipping options aren't available for your country then send me a message and i'll update the postage in order for you to be able to make a purchase. Thanks.....

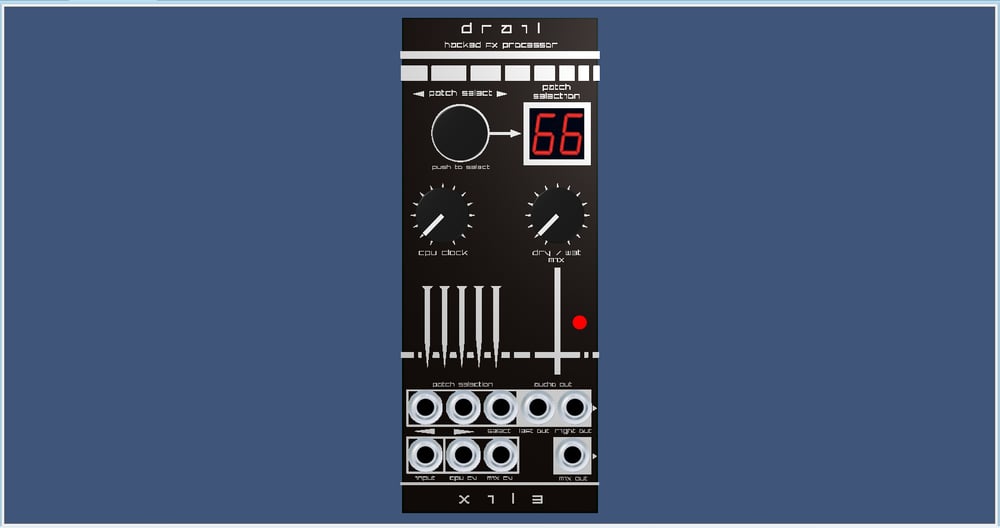

Drail is a 10HP, 40mm deep modified fx processor.
Current draw V+ 120MA / V- 20MA
The module is based on a fixed stereo fx processor chip which contains 100 presets. These presets consist of numerous reverbs, delays, harmonizer/pitch shifters and modulators such as flangers and phasers.
It has a mono input, a summed L/R mix output with dry wet control which covers 0-100% wet,
Two 100% wet stereo outputs give access to the ping pong delays and different phases of panning in the stereo field that some of the effects use,
The combination of summed dry wet and separate stereo fx ouputs offers some variation in how you might hook the module up to achieve different results in a setup.
Patches can be selected manually, or by gate inputs with an input to cycle each way through the patches and an input to select them.
In stock form it's a fairly vanilla and quite unremarkable, all be it useful set of fx. By applying some of the tricks learned in my time in the circuit bending arena the whole thing becomes a Swiss army knife of weirdness and opens up to some bizarre effects and unruly behavior. With the principles of hardware hacking applied and the cpu reclocked, along with some creative phase altering in the signal path, the processor takes on an entirely new life. Still being able to run as a useful set of stock reverbs, delays or modulators, but doubling up as an interesting sound design tool. All sorts of mad sounds and unexpectedly good processing can be achieved. Great for soundscapes, turning basic sounds into things that are bigger than the sum of their parts, making guitars sounds insane, it can even be used to turn a saw into a pseudo supersaw that somehow looks like a kind of mutated pwm square by using the modulator fx. This kind of thing gets fat when you start using both the dry wet mix output and the 100% wet L/R outs. With 100 fx to choose from, there's generally something interesting and at times fascinating to be found when messing around with it.
From experience, different fx chip sets behave in radically different ways when attempts to circuit bend or reclock them are made. Some prove to be pointless and uninteresting, others become prone to crashes and are rendered too unpredictable.and useless beyond extreme noise This one happens to be an excellent target for a bit of creative alteration. When underclocking the cpu, a kind of subtle low pass filtering effect is applied. Not enough to make the effect undesirable, but enough to eliminate the unwanted noise inherent to underclocking. In testing this chip set and discovering it's predictable, but quite abstract nature when abused, it became obvious that it would make a brilliant target for an interesting module. One which i'm finding to be an excellent addition to my own rigs. Given the roots of how it came about and how that ended up sounding, it is i imagine an acquired taste, but a quite unique acquired taste in the scheme of things.
Check the video links below for a spec run down and demos.
At the time of release a feature/spec vid has been made. This is a long vid consisting of three parts and is the result of being asked to make a demo that wasn't 'just noise'. It's done in an 'Amiga demoscene' style. It consists of three tracks. Each track is full of the drail doing various modulated and at times unhinged stuff to different sound sources. I'll upload more of my usual powerelectronix/noise/sound design orientated stuff as i jam different sets and find things that yield cool results.
Spec rundown - long play demoscene outing......
Ships with power cable and M3 mounting screws
Tracked shipping and tracking number provided upon dispatch.
